Create warm life
12 Years
| Ask Lasest Price | |
| Brand Name : | Beipeng |
| Certification : | ISO9001,ISO-14001,CHINA ENVIRONMENTAL LABELLING |
| Model Number : | +86 10 13521135351 |
| Price : | U.S.169.92~U.S.900 per cubic |
| Delivery Time : | within 5 days |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 1200000 Cubic Meter/Cubic Meters per Year |
Why Choose us?
1. We're the largest manufactuer and leader of this industry in China.
2. Various styles for you to choose.
3. High and stable quality with competitive price.
4. Short lead time.
5. Sample order or smaller quantity will be appreciated.
6. Best service will be offered to our clients.
Inquire us now and we'll not let you down.
| Packaging Details: | Plastic Film |
|---|---|
| Delivery Detail: | 7 days |
<:article id="richTextContainer" class="article richtext richtext-detail AE:disable">
High compression resistance
Moisture-proof, airtight
Non-absorbent
Corrosion resistance
Low thermal conductivity, long life
Foam Board
XPS Insulation Boards (DOESLIFE) polystyrene resin as the main raw material, by a special process of continuous extrusion molding of rigid foam sheet under introduced production line, has a perfect closed cell structure.
The world's most advanced foaming(CO2) process is applied. Our products are more friendly to the environment.
It's widely used in wall insulation, cold storage, parking platforms, airport, railway, concrete roof construction, highways, etc.
Our certificates:
High-Tech Enterprise Certificate
ISO9001:2008
ISO14001:2004
ISO14024:1999 (China Environmental Labelling)
Advantages:
1. high compression resistance
2. moisture-proof
3. airtight
4. non-absorbent
5. corrosion resistance
6. low thermal conductivity
7. lightweight
8. Life time:60 years
9. environmentally friendly
Data Sheet:
| Technical Data Sheet | |||
| Extruded Sheet (XPS) | |||
| Model | ×200 ×250 ×350 | ×400 ×450 ×500 ×600 | ×650 ×700 ×800 |
| Thermal Conductivity w/mk | 0.026 0.027 0.030 0.032-0.035 | ||
| Dimensional Stability | 0.3-1.0 | ||
| Applicable Temperature | -50°C - +75°C | ||
| Compression Strength kpa | 200 250 350 400 450 500 600 650 700 800 | ||
| Water Absorption | 0.3-1.0 | ||
| Density kg/m3 | 30-33 33-36 36-40 43-53 | ||
| Combustion Performance | GB8624-2012 Grade A, Grade B1 and Grade B2; GB8624-2006 Grade C or Grade B; GB8624-1997 Grade B1, Grade B2 and Grade A | ||
| Oxygen Index | IO26-33 | ||
| Length | 1200 1450 1800 2400 | ||
| Width | 600 1200 | ||
| Thickness | 5 10 20 25 30 40 50 60 70 80 90 100 120 | ||
| Edge Shape | SS Flat Top SL Lap Joint TG Tenon RC Rain Gutter | ||
| Surface | Embossing Slotting Planing Smooth Surface | ||
| Applications | Insulation and Energy-Saving for Building Walls; Heat Preservation and Insulation for Cold Storage; Heat Preservation and Insulation for Roof; Stops and Side Panel on High-Speed Rail and Roads; Duct Pipe for Central Air Conditioner; Hydraulic Projects | Heat preservation and insulation for cold storage ground, steel-work roof, concrete roof construction; Frost-heave control for high-speed road, railway and airfield runway. | High-speed rail, CRTS track; Heavy cold storage ground. |
Surface Type:
Applications:
It's widely used in wall insulation, cold storage, parking platforms, airport, railway, concrete roof construction, highways, etc.

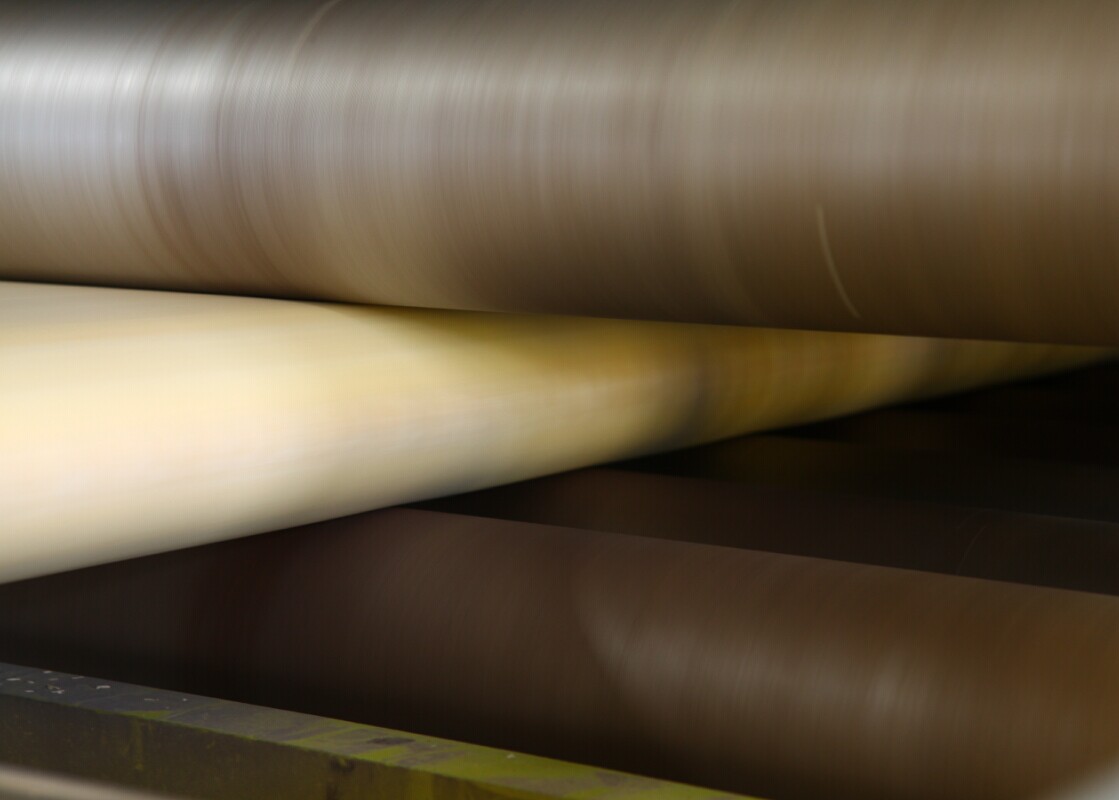

Workshop:
|
|
